SS800 Series
(Inclusive with GST)
The SS800 Series air starters feature a vane motor and run on natural gas. This series comes with pre-engage and inertia engagement types, as well as caged or overhung nose options, and can be rotated both counterclockwise and clockwise.
Key Features:
- Weighs 93 lbs (31.3 kg)
- Powerful 75 hp motor
- The leading large-frame starter design, the standard by which all others are measured
- Simple design ensures rugged dependability and ease of maintenance
- Multiple offset gear ratios: B = 2.18:1; C = 2.53:1; D = 3.44:1
- Backcap ports for injection lubricating
- Versatile:
- All models sealed for use in air or gas applications
- Offset design for simple mounting
- Inertia (SS810) and pre-engaged (SS815, SS825 and SS850) starters available
- 4 inlet, 4 exhaust, and 16 drive housing orientations
- 90-150 psi (6.2-10.3 bars) operation
- Left- and right-hand rotation available
| SS810 and SS815 | ||||
| Pressure psi (bar) | Breakaway Torque (ft-lb [Nm]) | Speed @ Max HP (rpm) | Max Power (hp [kW]) | Flow @ Max HP (scfm [L/s]) |
| 90 (6.2) | 170 (230) | 2700 | 45 (34) | 1100 (519) |
| 120 (8.3) | 205 (278) | 2800 | 58 (43) | 1250 (590) |
| 150 (10.3) | 250 (339) | 3200 | 75 (56) | 1700 (802) |
The SS800 Series air starters feature a vane motor and run on natural gas. This series comes with pre-engage and inertia engagement types, as well as caged or overhung nose options, and can be rotated both counterclockwise and clockwise.
Key Features:
- Weighs 93 lbs (31.3 kg)
- Powerful 75 hp motor
- The leading large-frame starter design, the standard by which all others are measured
- Simple design ensures rugged dependability and ease of maintenance
- Multiple offset gear ratios: B = 2.18:1; C = 2.53:1; D = 3.44:1
- Backcap ports for injection lubricating
- Versatile:
- All models sealed for use in air or gas applications
- Offset design for simple mounting
- Inertia (SS810) and pre-engaged (SS815, SS825 and SS850) starters available
- 4 inlet, 4 exhaust, and 16 drive housing orientations
- 90-150 psi (6.2-10.3 bars) operation
- Left- and right-hand rotation available
For engine displacement of:
Diesel–1000 to 20,000 CID (16 to 320 liters)
Carbureted–2000 to 40,000
CID (32 to 640 liters)

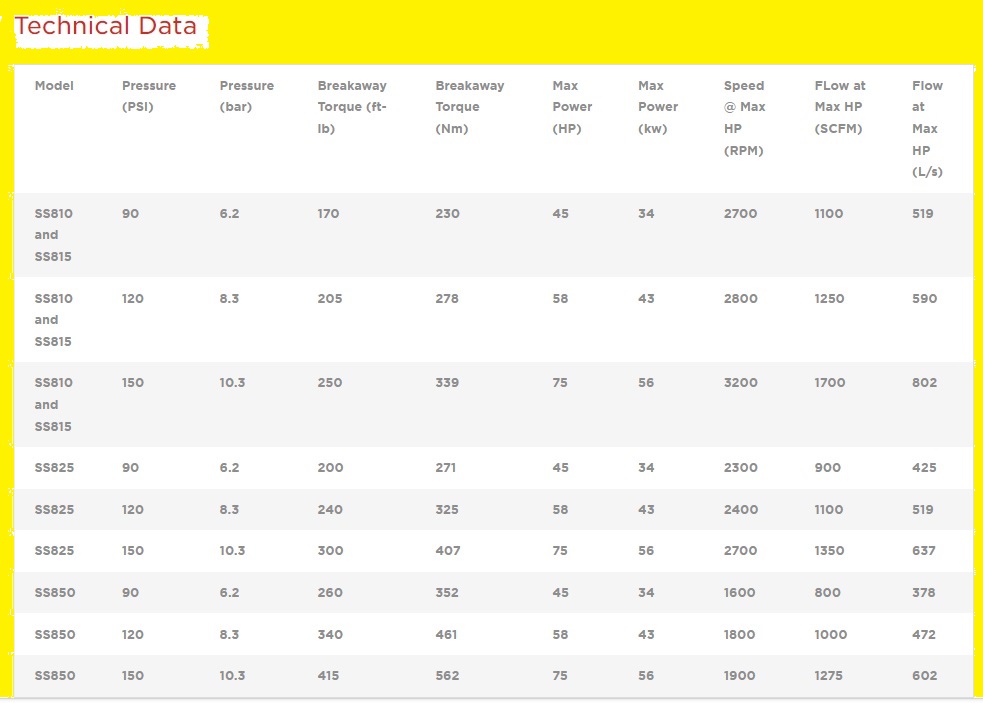

Specifications:
| SS810 and SS815 | ||||
| Pressure psi
(bar) |
Breakaway Torque
(ft-lb [Nm]) |
Speed @ Max HP (rpm) | Max Power (hp [kW]) | Flow @ Max HP (scfm [L/s]) |
| 90 (6.2) | 170 (230) | 2700 | 45 (34) | 1100 (519) |
| 120 (8.3) | 205 (278) | 2800 | 58 (43) | 1250 (590) |
| 150 (10.3) | 250 (339) | 3200 | 75 (56) | 1700 (802) |
