150BMG/150BMP Series

The 150BM Series features an inline design, equipped with a vane motor and standard caged nose. Key Features:

Weighs 38 lbs (17.2 kg)
Powerful 32 hp motor
The leading mid-range starter design, the standard by which all others are measured
Simple design ensures rugged dependability and ease of maintenance
Multiple offset gear ratios: E = 3.46:1; D = 3.94:1
Backcap ports for injection lubricating
Versatile:
150BMG sealed for use in air or gas applications
Offset design for simple mounting
Inertia and pre-engaged starters available
4 inlet, 4 exhaust, and 18 drive housing orientations
90-150 psi (6.2-10.3 bars) operation
Left- and right-hand rotation available

For engine displacement of: Diesel–500 to 2000 CID (8 to 32 liters) Carbureted–1000 to 4000 CID (16 to 64 liters) Specifications:

The 150BM Series features an inline design, equipped with a vane motor and standard caged nose.

Key Features:

Weighs 38 lbs (17.2 kg)
Powerful 32 hp motor
The leading mid-range starter design, the standard by which all others are measured
Simple design ensures rugged dependability and ease of maintenance
Multiple offset gear ratios: E = 3.46:1; D = 3.94:1
Backcap ports for injection lubricating
Versatile:
150BMG sealed for use in air or gas applications
Offset design for simple mounting
Inertia and pre-engaged starters available
4 inlet, 4 exhaust, and 18 drive housing orientations
90-150 psi (6.2-10.3 bars) operation
Left- and right-hand rotation available

For engine displacement of:

Diesel–500 to 2000 CID (8 to 32 liters)

Carbureted–1000 to 4000

CID (16 to 64 liters)

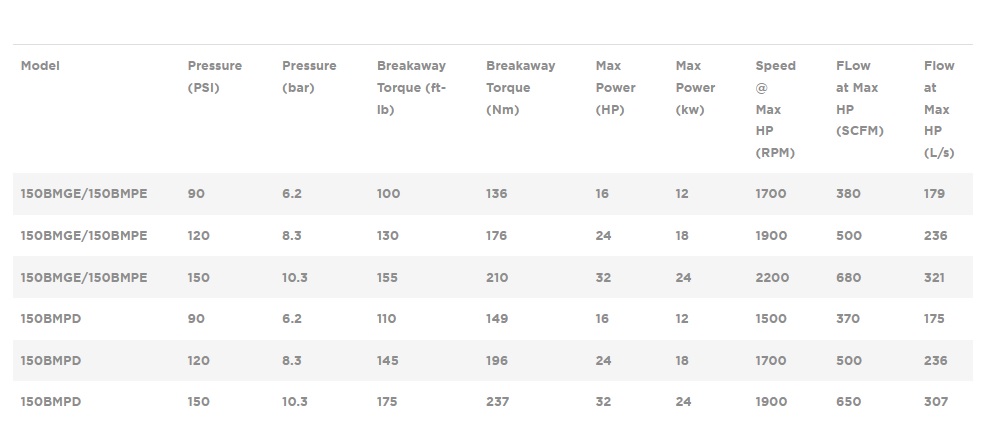

Specifications:
