ST400 Series
(Inclusive with GST)
The ST400 Series features inertia engagement, an overhung nose, and a radial turbine design. Great for use in power generation, rail, transportation and marine applications.
Key Features:
More Product Info: https://andaintl.com.sg/UploadedImg/Product/8112021_50600_PM_st400.pdf
- Weighs38 lbs (17.2 kg)
- Efficient 26 hp turbine motor uses no external lubrication
- One-hose hookup simplifies required piping
- In-line design weighs only 23 lbs (10.4 kg)
- Sealed oil-bath lubrication for gears and bearings provides maintenance free operation
- Versatile:
- Removable mounting flange can be rotated 360 degrees for greater mounting flexibility
- Compact, lightweight design makes installation easy
- Overhung pinion design fits most worldwide manufacturers’ engines
- 30-150 psi (2.1-10.3 bars) operation
| ST499 – 99% ARC | ||||
| Pressure psi (bar) | Breakaway Torque (ft-lb [Nm]) | Speed @ Max HP (rpm) | Max Power (hp [kW]) | Flow @ Max HP (scfm [L/s]) |
| 30 (2.1) | 50 (68) | 1550 | 7 (5) | 320 (251) |
| 60 (4.1) | 115 (156) | 1600 | 14 (10) | 550 (260) |
| 90 (6.2) | 185 (251) | 1650 | 26 (19) | 765 (361) |
The ST400 Series features inertia engagement, an overhung nose, and a radial turbine design. Great for use in power generation, rail, transportation and marine applications.
Key Features:
- Weighs38 lbs (17.2 kg)
- Efficient 26 hp turbine motor uses no external lubrication
- One-hose hookup simplifies required piping
- In-line design weighs only 23 lbs (10.4 kg)
- Sealed oil-bath lubrication for gears and bearings provides maintenance free operation
- Versatile:
- Removable mounting flange can be rotated 360 degrees for greater mounting flexibility
- Compact, lightweight design makes installation easy
- Overhung pinion design fits most worldwide manufacturers’ engines
- 30-150 psi (2.1-10.3 bars) operation
For engine displacement of:
Diesel–300 to 3600 CID (5 to 60 liters)

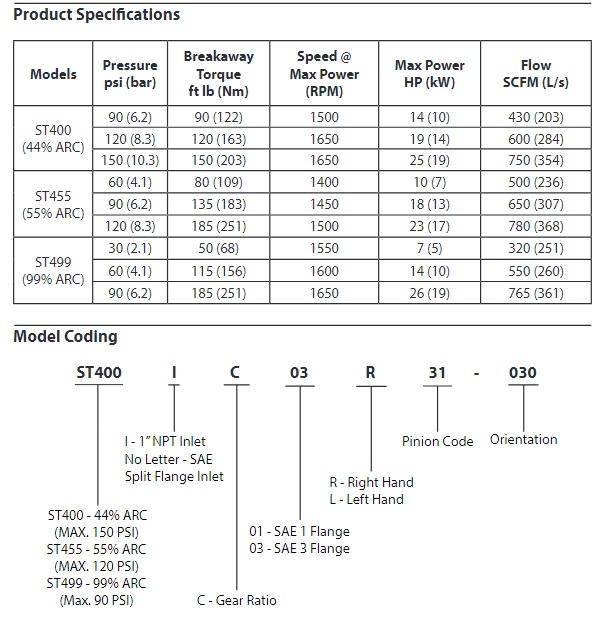

Specifications:
| ST499 – 99% ARC | ||||
| Pressure psi
(bar) |
Breakaway Torque
(ft-lb [Nm]) |
Speed @ Max HP (rpm) | Max Power (hp [kW]) | Flow @ Max HP (scfm [L/s]) |
| 30 (2.1) | 50 (68) | 1550 | 7 (5) | 320 (251) |
| 60 (4.1) | 115 (156) | 1600 | 14 (10) | 550 (260) |
| 90 (6.2) | 185 (251) | 1650 | 26 (19) | 765 (361) |
More Product Info: https://andaintl.com.sg/UploadedImg/Product/8112021_50600_PM_st400.pdf
